CHRIS O'NEAL, PUBLISHER October 13, 2026, 1:30 pm

While Microsoft’s third-generation inference accelerator offers a significant improvement in memory bandwidth and a dense 96-chip rack architecture, advancing the company’s objective to reduce reliance on third-party GPUs, its headline efficiency claims remain unverified. Furthermore, with production deployments not anticipated until 2027, the ambitious transition to a million-chip scale introduces substantial uncertainties regarding manufacturing capacity, power consumption, and economic viability.

Microsoft’s objective to transition toward proprietary silicon for AI infrastructure is exemplified by the introduction of the Azure Maia 300. By integrating high-bandwidth HBM4 memory, a multi-chiplet configuration, and a sophisticated rack-scale architecture, the system is engineered to address the complexities of modern inference workloads.

However, the headline assertion that the Maia 300 delivers 40% greater token efficiency per megawatt compared to leading GPU-based systems lacks necessary transparency. Microsoft has not disclosed the specific competing hardware, the underlying model architectures, the workload configurations, or the benchmark methodologies employed. Consequently, this claim remains a prospective projection rather than an independently verified performance metric.

In a market where performance-per-watt has become a critical benchmark for AI infrastructure, such distinctions are vital. Meaningful efficiency comparisons require standardized workloads, consistent service-level requirements, and clearly defined measurement boundaries. While the Maia 300 presents a compelling architectural design and a robust deployment roadmap, the validity of its efficiency advantages remains subject to future empirical validation.

The real advance may be memory, not arithmetic

Microsoft’s Maia 300 design reflects a growing challenge in large-scale AI inference: generating tokens efficiently can depend as much on moving data as on performing mathematical operations.

During autoregressive generation, a model repeatedly executes operations involving its weights and intermediate state. The key-value cache, or KV cache, stores attention-related information from previously processed tokens so that the model does not have to recompute the entire sequence for every new token. As context lengths grow and conversations involve multiple reasoning steps, memory capacity, bandwidth, and data movement can become critical constraints.

An accelerator with impressive peak arithmetic throughput can still underperform if its compute units spend too much time waiting for data.

Maia 300 appears designed to address that problem precisely.

According to specifications, the accelerator moves from Maia 200’s monolithic design to a multi-chiplet package. The compute die uses TSMC’s N2P process, while separate memory-controller and I/O chiplets use 3-nanometer technology. The division allows Microsoft to concentrate its most advanced process technology on the compute components while using different manufacturing technology for supporting functions.

The chip also introduces a non-uniform memory access architecture, intended to improve the placement of data relative to the compute resources that consume it. Microsoft describes software-defined dataflow, AI-assisted kernel optimization and enhanced support for low-precision MXFP4 operations as additional tools for reducing data movement and improving resource utilization.

These are meaningful design choices. They are not, by themselves, proof of a particular end-to-end performance advantage.

The specifications show why memory deserves the attention.

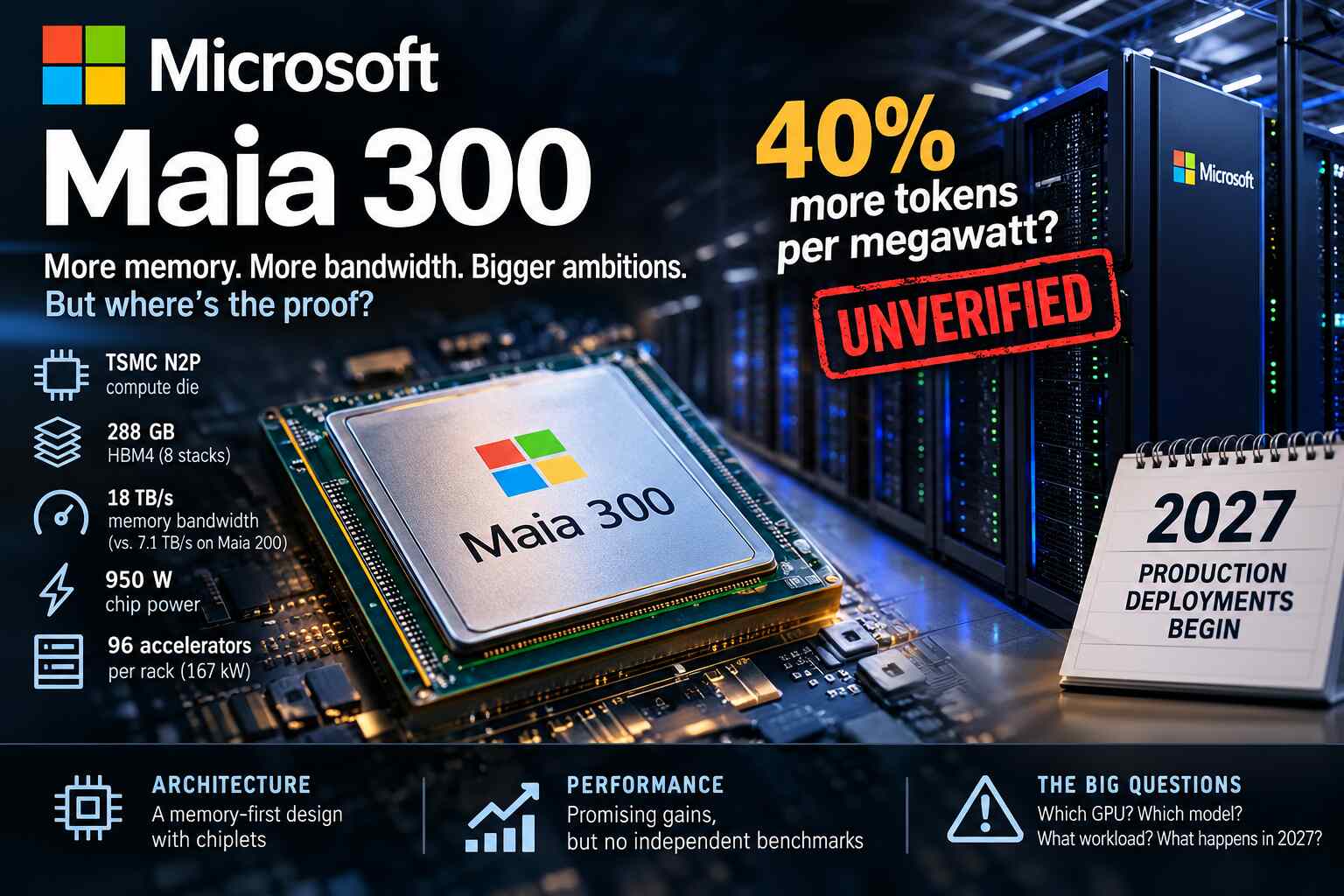

Maia 300 is listed with 288 GB of HBM4 across eight stacks and peak memory bandwidth of 18 TB/s. Maia 200 has 216 GB of HBM3e across six stacks and 7.1 TB/s of bandwidth.

That represents approximately 2.54 times the memory bandwidth and 33% more memory capacity. Based on the published figures, peak memory bandwidth per watt rises from approximately 9.5 GB/s per watt on Maia 200 to 18.9 GB/s per watt on Maia 300.

In other words, the new generation more than doubles this particular measure of memory bandwidth efficiency.

Peak compute throughput improves less dramatically. Microsoft lists 13.8 petaflops at FP4 and 6.9 petaflops at FP8 for Maia 300, compared with 10.1 petaflops at FP4 and 5.1 petaflops at FP8 for Maia 200. Those figures represent gains of approximately 37% and 35%, respectively.

But listed chip power also increases, from 750 watts to 950 watts. Dividing the published peak FP4 throughput by chip power produces an approximate 8% improvement in peak FP4 throughput per watt.

These calculations are derived from vendor specifications, not measured application benchmarks. They also do not account for differences in utilization, numerical precision, memory traffic, or software efficiency.

Nevertheless, the contrast is revealing: Maia 300’s greatest numerical improvement is in memory bandwidth, not compute throughput per watt.

That is a plausible design strategy for inference workloads dominated by data movement. The next question is how consistently that architectural advantage translates into more completed tokens under real production conditions.

The 40% efficiency claim needs a benchmark

Microsoft’s headline figure is potentially important because electricity is becoming a major constraint on the expansion of AI infrastructure.

If an accelerator platform can genuinely generate 40% more useful tokens per megawatt than a competing system while meeting the same latency, quality and availability requirements, the implications could extend beyond electricity costs. Better throughput within a fixed power allocation can increase the number of AI services a data center supports without requiring an equivalent increase in electrical capacity.

But the phrase tokens per megawatt is not a complete benchmark specification.

Which model is being served? What are its parameter count, precision, and context length? How many concurrent requests are processed? What batch sizes are used? What are the input-to-output token ratios? What latency limits must be met? Are the systems compared at equivalent output quality and reliability?

These details can change the result substantially.

Aggressive batching, for example, can improve accelerator utilization and throughput, but may increase waiting time for individual requests. A configuration optimized for maximum throughput may therefore be unsuitable for an interactive assistant that must respond quickly. Conversely, a low-latency configuration may sacrifice aggregate throughput to meet response-time targets.

The comparison also needs to define its power boundary. Accelerator power alone is not the same as total rack power, and rack power is not the same as facility power. Host CPUs, networking, memory, cooling and power-conversion losses all influence the amount of useful inference a data center can deliver per megawatt of electrical capacity.

Microsoft’s announcement describes a complete system rather than just a chip, which is the correct level at which to consider performance. But the public 40% claim does not identify enough benchmark detail to establish how the comparison was conducted.

Nor is the claim independently reproducible today. Maia is deployed within Microsoft’s own infrastructure strategy, and the announcement does not establish a generally available Maia 300 instance through which outside researchers could run an equivalent test.

The proper conclusion is not that Microsoft’s number is necessarily wrong. It is that readers cannot yet determine precisely what it means or independently verify it.

The distinction is especially important because Maia 300 will not begin production deployments until 2027. By then, the relevant competition will have evolved. Microsoft’s results must ultimately be assessed against the GPU and custom-accelerator platforms available when Maia 300 actually enters service, rather than against an unspecified snapshot of today’s hardware.

Seven times the rack throughput is not seven times the efficiency

Microsoft also advertises up to seven times the rack-scale token throughput of Maia 200. That figure sounds extraordinary until the system configurations are examined.

The published Maia 300 configuration contains 96 accelerators in a rack rated at approximately 167 kilowatts. Maia 200’s comparison rack contains 48 accelerators and draws approximately 64 kilowatts.

Maia 300 therefore doubles the accelerator count while increasing rack power by approximately 2.6 times.

The comparison is not meaningless. A denser rack with substantially greater aggregate memory bandwidth can be valuable when a data center’s constraints include floor space, interconnect topology, and the ability to serve larger workloads. But a sevenfold throughput figure should not be confused with a sevenfold improvement in efficiency.

Normalizing the advertised rack throughput by the stated power figures produces a much smaller relative gain than the raw rack comparison. Microsoft’s claimed Maia 300 per-watt advantage over Maia 200 is approximately 2.5 times.

That is still a substantial claim, but it is a different claim.

External comparisons require similar discipline. Reuters reported that Nvidia’s GB300 rack configuration contains 72 GPUs and draws approximately 142 kilowatts. Maia 300’s 96-accelerator rack has a higher stated power demand, but accelerator count and rack power alone cannot establish which system delivers better inference performance.

The systems must be evaluated on comparable models, precision, throughput, latency, utilization, and power boundaries.

For HPC engineers, the distinction between peak rack throughput and useful work per unit of energy is fundamental. A large system can deliver more aggregate output simply by consuming more power and deploying more silicon. The engineering challenge is to demonstrate how much additional useful work it delivers for every additional unit of electricity and capital investment.

A 167-kilowatt rack changes the infrastructure equation

Maia 300 is also a data-center infrastructure story.

Microsoft’s announced rack configuration contains 96 accelerators, 27.6 TB of aggregate HBM capacity and approximately 1.7 PB/s of aggregate HBM bandwidth. The rack’s stated power envelope is 167 kW.

That is roughly 1.74 kW per accelerator slot when rack-level power is divided by the accelerator count. It is not the power consumption of an individual Maia 300 chip: the accelerator itself is rated at 950 watts, and the rack figure includes other system components.

The cooling design combines liquid cooling for accelerators, voltage regulators and switch ASICs with air cooling for the remaining components. Microsoft says the systems can also operate in older air-cooled data centers, although that statement should not be interpreted as a guarantee that every existing facility can accommodate the rack’s power density without electrical, thermal or mechanical modifications.

The in-rack fabric uses six switch ASICs across three liquid-cooled trays, with an optical second tier connecting up to 128 racks into a larger superpod. Microsoft also describes a two-tier Ethernet-based scale-up fabric, custom AI transport, and 32 ports operating at 400 Gb/s.

These details matter because inference at scale is not simply a matter of installing faster chips. Data must move between memory and compute resources, across accelerators and between racks without allowing communication overhead to erase the benefits of additional silicon.

The challenge becomes more demanding for long-context reasoning and multi-step agentic workloads, where requests can require repeated model execution, sustained KV-cache access and communication among distributed resources.

Microsoft’s system-level approach is technically sensible. Yet the 167-kW rack rating also underscores the scale of the deployment challenge. Better efficiency per token does not eliminate the need to secure power, cooling capacity, networking and physical space for a much larger fleet.

The million-chip question

Microsoft says it intends to scale its Maia family to multigigawatt deployments beginning in 2027. Reuters has reported the possibility of more than one million Maia 300 chips being deployed next year, while earlier trade reporting described discussions involving more than 300,000 units for 2027 delivery.

Those figures should not be treated as equivalent production commitments. Microsoft has not publicly reconciled them in the announcement.

The difference is material.

At 96 accelerators per rack, one million chips would require approximately 10,417 racks. At 167 kW per rack, that represents about 1.74 GW of rack power alone.

A 300,000-chip deployment would correspond to approximately 3,125 racks and 522 MW at the same stated rack power.

These are derived estimates based on the published rack configuration. They exclude additional facility overhead and should not be interpreted as confirmed deployment plans.

The scale of the arithmetic illustrates why a shipment forecast cannot be separated from data-center construction and power procurement. Even if the silicon can be manufactured on schedule, a deployment of this magnitude requires facilities capable of receiving, powering, cooling and networking the equipment.

Manufacturing is another constraint. Maia 300 depends on advanced compute-die manufacturing, HBM4 supply, and sophisticated packaging. Those inputs are also important to other AI accelerator vendors competing for foundry capacity, memory and packaging resources.

The chiplet design may offer manufacturing and cost advantages, but the announcement does not establish how much capacity has been secured, what yields Microsoft expects, or how much flexibility it has if any major component becomes a bottleneck.

Microsoft’s broader capital expenditure plans demonstrate the company’s commitment to AI infrastructure. They do not, on their own, establish that a particular accelerator will ship in a particular quantity on a particular date.

The production timeline must therefore be treated as a milestone to watch, not a completed deployment.

Microsoft’s strategic objective is bigger than one chip

The most consequential part of the announcement may be Microsoft’s intention to make Maia its primary inference system for Microsoft products and services.

That ambition would change the company’s relationship with the accelerator market. Rather than relying principally on external vendors for the silicon underpinning its own AI services, Microsoft would have greater control over the hardware, systems software, networking and workload-specific optimizations that determine inference economics.

The Maia 200 production program provides some evidence that the strategy is progressing beyond laboratory development. Microsoft says Maia 200 is serving production workloads, including Copilot, and supports OpenAI models, Microsoft’s own MAI models and open-source model families. GitHub Copilot and Microsoft Foundry were identified as intended additions to its Maia deployment plans.

That operating experience gives Maia 300 a more credible foundation than a first-generation chip announcement.

It also raises a question Microsoft has not yet answered clearly: how will customers access the new hardware?

The announcement does not establish that Azure customers will be able to select Maia 300 as a generally available accelerator instance or run their own models directly on it through Microsoft Foundry. Internal use by Microsoft’s services and broad customer access are different propositions.

A successful internal accelerator can still be strategically valuable, even if customers never interact with it directly. Microsoft could optimize its own services, manage its infrastructure costs and reserve purchased GPUs for workloads better suited to them.

But claims about a transformed cloud computing market would require evidence beyond the announcement of a new chip.

There is also an economic question. Microsoft emphasizes performance per megawatt, but the public announcement does not provide a comparable Maia 300 tokens-per-dollar figure. Electricity is important, but the total cost of inference also includes accelerators, hosts, networking, memory, cooling, facility construction, software engineering, and equipment utilization.

An accelerator that produces more tokens per unit of electricity is not automatically the least expensive system to operate.

The commercial test is whether Microsoft can deliver the required model quality and service levels at a lower total cost while deploying the hardware at the intended scale.

What Microsoft must demonstrate next

Microsoft has promised more information at its Ignite conference in November. That provides an opportunity to move the discussion from architectural claims to verifiable operating evidence.

Several questions deserve direct answers.

First, what GPU system, model, and serving configuration underpin the 40% efficiency expectation? A reproducible benchmark should specify precision, context length, batch size, throughput, latency, and the power boundary used.

Second, what does the 2027 deployment commitment mean in physical terms? Microsoft should clarify the difference between chips ordered, chips manufactured, systems installed and systems accepting production workloads. It should also explain the reported difference between the 300,000-unit figure and the possibility of more than one million chips.

Third, what is the actual deployment target in gigawatts, and which data centers will receive Maia 300 first? A power figure without a deployment schedule and identified capacity remains an incomplete description of the program.

Fourth, will customers gain direct access to Maia 300, or will Microsoft initially reserve it for first-party services?

Finally, how does Maia 300 compare on tokens per dollar and useful throughput per facility megawatt against the GPU systems Microsoft will continue to purchase? Those comparisons should include the alternative systems available when Maia 300 reaches production, not simply the generation available at announcement time.

The verdict: credible engineering, unproven economics

Maia 300 deserves serious attention from the supercomputing community. Its increased HBM capacity, substantially higher memory bandwidth, chiplet architecture, and integrated rack design address real challenges in large-scale inference.

Microsoft’s decision to optimize the entire platform around its own production workloads is also significant. At hyperscale, close coordination between models, kernels, compilers, memory systems, networking and silicon can yield advantages that isolated peak-performance specifications fail to capture.

But the announcement does not yet establish the size of those advantages in independently reproducible terms.

The 40% more-tokens-per-megawatt claim lacks a named comparator and a disclosed workload. The sevenfold rack-throughput figure combines a doubled accelerator count with a much higher power envelope. The multigigawatt ambition has no precise public target, and the competing chip-volume reports have not been reconciled.

None of those gaps invalidates Maia 300’s architecture. They define what remains to be demonstrated.

For Microsoft, the real test begins when production systems are installed, workloads are measured, and the economics can be compared against competing platforms. Until then, Maia 300 should be regarded as a technically substantial infrastructure program with promising design choices, not a proven 40% efficiency victory.

The chip may ultimately help Microsoft extract more useful AI work from every megawatt. The industry still needs the benchmarks, deployment data, and cost figures to establish how much.

AMD unveils open Helion rack blueprint for CPU-led agentic AI, but the performance questions remain
Featured

AMD unveils open Helion rack blueprint for CPU-led agentic AI, but the performance questions remain

Tyler O'Neal, Staff Editor October 12, 2026, 11:14 am

AMD is betting that the next phase of AI infrastructure will need far more than GPU acceleration. Its Helion rack blueprint dedicates up to 32,768 EPYC CPU cores to agent execution, while leaving the system’s power efficiency, topology and real-world economics unproven.

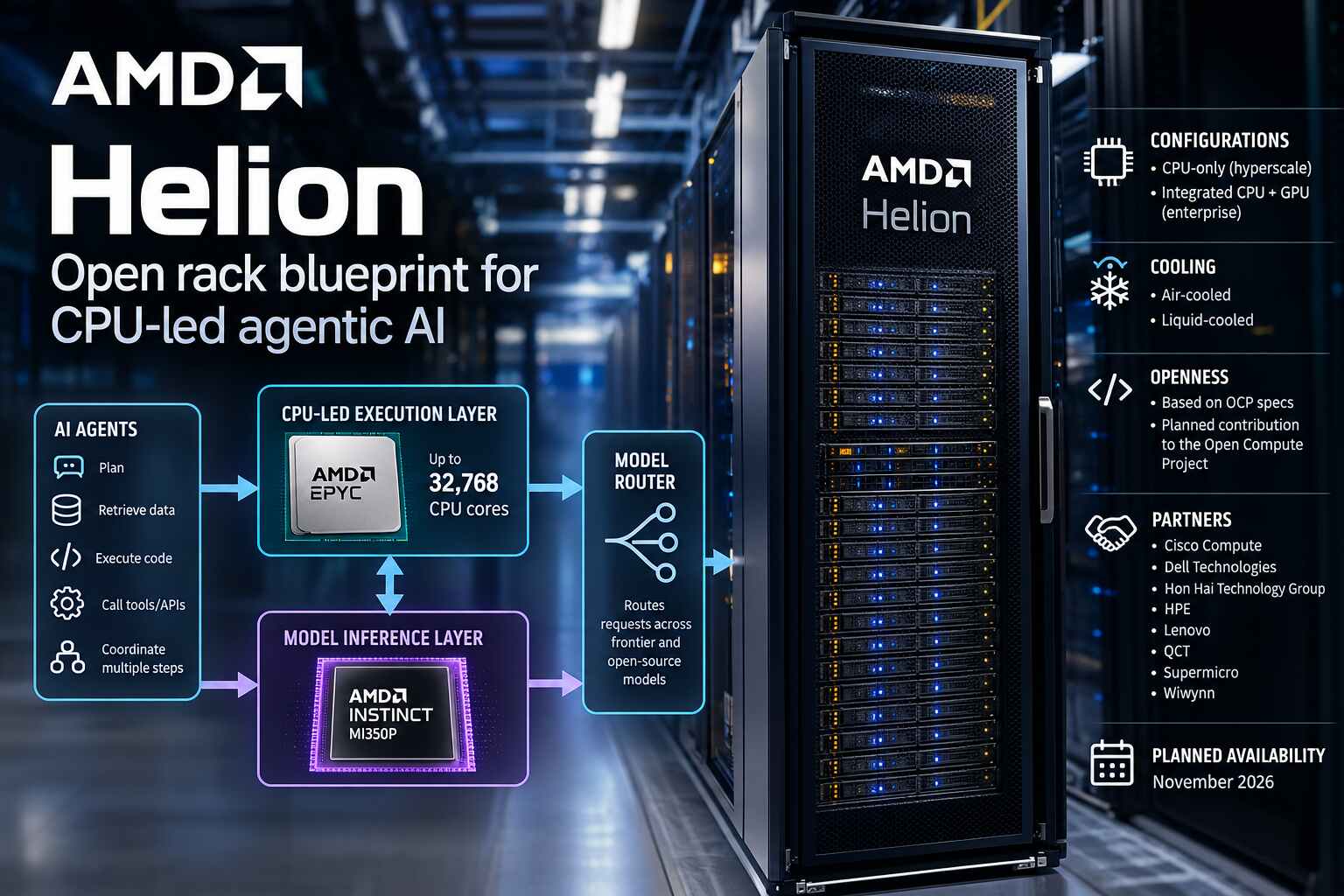

AMD has introduced Helion, a rack-scale computing blueprint designed to address a growing challenge in artificial intelligence infrastructure: the computational work surrounding a model can become almost as important as the model itself.

As AI systems evolve from single-prompt interactions into agents that retrieve information, execute code, query databases, invoke external tools, and coordinate multistep workflows, the infrastructure supporting them must do more than accelerate matrix operations. It must manage concurrent processes, sustain application logic, move data between services and coordinate repeated interactions with inference engines.

AMD’s Helion architecture attempts to turn that emerging requirement into a distinct infrastructure tier. Its hyperscale configuration can scale to 32,768 CPU cores using sixth-generation AMD EPYC processors, with agent execution handled separately from the infrastructure serving AI models. An alternative configuration combines EPYC CPU nodes, AMD Instinct MI350P GPU nodes and general-purpose computing within a rack-scale design intended for enterprise deployments.

The announcement is significant because it challenges the increasingly familiar assumption that expanding AI capacity primarily means adding more accelerators. But it also raises questions that AMD has not yet answered: How much CPU capacity does a production agent workload actually require? What does the rack consume at full operating load? And does separating agent execution from model inference improve performance and economics enough to justify another layer of infrastructure?

For now, Helion is a design announcement, not a validated performance result.

The hidden computing workload behind AI agents

The distinction between model inference and agent execution is central to understanding Helion.

A conventional inference workload sends input to a trained model and processes the resulting output. Depending on the model and serving configuration, the dominant computational demands can include matrix multiplication, attention operations, memory bandwidth, and moving model parameters through accelerator memory.

Agentic systems introduce additional work around that inference cycle.

An agent may interpret a request, select a tool, retrieve documents, execute a program, query a database, inspect a result, and call a model again before completing a task. Multiple agents may perform these operations concurrently, with each workflow generating its own scheduling, data-access, and coordination demands.

Much of this activity involves general-purpose computation rather than sustained GPU-intensive numerical operations.

CPU resources can be required for:

  • Workflow orchestration: Scheduling tasks, managing dependencies and coordinating multistep execution.
  • Tool execution: Running application code, invoking APIs and interacting with databases or enterprise services.
  • Retrieval and data preparation: Processing requests, filtering results, coordinating storage access and preparing context for model inference.
  • Concurrent session management: Maintaining execution state and coordinating large numbers of active workflows.
  • Systems integration: Connecting model-serving infrastructure to existing software, security controls and operational services.

These operations do not all have identical resource requirements. Some are CPU-intensive; others are constrained by memory latency, network performance, storage access or external service response times. A database query waiting on a remote system, for example, does not necessarily become faster simply because additional CPU cores are available.

That distinction matters because AMD’s maximum core count is a capacity specification, not a measurement of completed agent tasks.

The underlying architectural thesis is nevertheless credible: when AI applications generate large numbers of tool calls and control-flow operations, allocating every computing resource to GPU inference may be an inefficient way to build the entire system.

The harder question is how to size that additional CPU capacity for real workloads.

Two configurations, two different infrastructure strategies

AMD describes two Helion configurations that address different deployment requirements.

The hyperscale approach: separate agent execution from inference

The CPU-only configuration uses sixth-generation AMD EPYC processors and supports a disclosed maximum of 32,768 CPU cores. It is intended to run agent-execution workloads while connecting to separate infrastructure responsible for model inference.

This arrangement follows a disaggregated computing model. Instead of treating CPUs and GPUs as components that must always reside in the same rack, operators can allocate resources to separate functional tiers.

A CPU-heavy execution pool could manage workflow logic and tool interactions, while an accelerator pool handles model requests. The two systems would communicate over a network fabric, allowing each tier to be provisioned according to its own utilization and capacity requirements.

In principle, this separation could improve resource utilization. CPU capacity would not have to scale in lockstep with GPU capacity, and an organization could expand its agent-execution tier without purchasing additional accelerators whenever orchestration demand increases.

It could also create new operational challenges.

The network between the execution and inference tiers becomes part of the application’s performance path. Each model request may involve request serialization, network transmission, inference queueing, and response handling. Agent workflows that repeatedly alternate between local computation and remote model calls could become sensitive to communication latency.

Storage and retrieval traffic add further complexity. A system may have abundant CPU capacity but still spend substantial time waiting for data, database responses, or inference capacity.

Consequently, the relevant performance measurement is not simply how many agent operations the CPU rack can execute. It is how quickly the complete system can finish a defined workload under realistic concurrency, network conditions, and inference demand.

AMD has not disclosed a Helion-specific benchmark establishing that result.

The enterprise approach: CPUs and GPUs in one rack-scale design

The second configuration combines EPYC CPU nodes, Instinct MI350P GPU nodes and general-purpose compute within a single rack-scale concept.

This integrated approach addresses organizations that prefer a more consolidated deployment rather than maintaining physically separate agent-execution and inference pools.

Combining these resources may simplify certain infrastructure decisions and reduce the operational distance between application execution and model serving. It also gives system integrators room to configure the balance between CPU capacity, accelerator capacity, and general-purpose computing according to deployment requirements.

However, an integrated rack is not automatically a more efficient rack.

The optimal CPU-to-GPU ratio depends on the application mix, model sizes, request rates, concurrency levels, and the proportion of time agents spend executing tools versus waiting for inference results. A configuration optimized for retrieval-heavy enterprise agents may be poorly matched to a workload dominated by repeated, large-model inference.

The same variability affects memory capacity, storage throughput and network requirements.

AMD has not disclosed a complete Helion bill of materials, including exact processor models, socket and node counts, memory configurations, or rack-level power limits. Without those details, customers cannot yet determine how closely the reference design matches their intended workload.

The 32,768-core figure needs engineering context

The headline number is impressive, but raw core counts are a poor substitute for a complete system specification.

AMD says the CPU-only configuration can scale to 32,768 cores. That tells prospective customers something about the design’s intended computational density. It does not reveal how those cores are distributed across servers, how much memory is available to them, or how the system behaves under sustained load.

The launch announcement does not specify the exact Helion node topology, processor SKU, socket count, memory capacity, rack dimensions, or maximum power envelope.

Those omissions matter in high-performance computing because system behavior depends on much more than aggregate processing resources.

Memory bandwidth determines how quickly cores can access data. Memory capacity constrains the number and size of resident workloads. NUMA topology affects access latency and the cost of moving data between processor domains. Network bandwidth and latency determine how efficiently distributed nodes coordinate with external services and inference clusters.

Software scheduling also matters. A large collection of cores is useful only if the workload can exploit the available parallelism without creating excessive synchronization, memory contention, or scheduling overhead.

Agent execution presents a particularly uneven workload. Some agents may spend most of their time waiting for external services, while others may perform substantial data processing or code execution. A large core allocation can help when enough independent CPU work is available, but it can also leave expensive resources underutilized when the workload is dominated by latency or serialized dependencies.

The rack’s power envelope is equally important.

A system with tens of thousands of cores must be evaluated against the facility infrastructure required to support it, including power distribution, cooling, networking, and serviceability. Air-cooled and liquid-cooled versions could offer different deployment options, but AMD has not provided the configuration-level power and cooling data needed to establish their relative density or efficiency.

The distinction is straightforward: 32,768 cores describe the scale of the proposed system, not the amount of useful work it will deliver per watt or per dollar.

The token router could matter as much as the hardware

Helion also includes an integrated token router that AMD says can direct model calls across frontier and open-source models.

The concept addresses another important feature of agentic AI infrastructure. A production application does not necessarily need the same model for every operation. A relatively simple classification or extraction task may be suitable for a smaller model, while complex reasoning or specialized generation may require a more capable system.

Routing requests across available models could, in principle, help operators balance capability, latency, cost and capacity.

But the announcement provides no detailed architecture, routing-policy description, latency measurements, or cost data for Helion’s token router. It also does not establish which routing decisions are supported or how the component integrates with model-serving infrastructure.

Those details are consequential.

A useful router must do more than direct traffic to an available endpoint. Depending on its intended role, it may need to account for model capability, request complexity, queue depth, endpoint availability, context requirements, and service-level objectives. Enterprise deployments may additionally require policies governing data privacy, model authorization, auditability, and which workloads can use external services.

Routing decisions can also change the economics of an agent workload. Sending more requests to smaller models may reduce inference expenditure, but only if the resulting answers remain sufficiently accurate and do not trigger additional retries, escalations or corrective work.

AMD has not yet published enough information to establish whether its router delivers these benefits or how it compares with existing orchestration and model-routing approaches.

For customers evaluating Helion, the software layer deserves scrutiny alongside the hardware specification. A powerful CPU rack cannot compensate for inefficient workflow design, poorly selected models or an orchestration system that generates unnecessary inference requests.

The open-infrastructure promise is not yet an accepted standard

AMD is positioning Helion as an open, rack-scale blueprint based on Open Compute Project specifications and says it plans to contribute the Helion specification to the Open Compute Project.

That distinction is important.

A design based on existing OCP specifications is not the same thing as a newly accepted OCP standard. The planned contribution represents a future step toward formalizing the design, not evidence that the complete Helion architecture has already been approved through that process.

Openness could nevertheless become a meaningful commercial advantage.

Rack-scale infrastructure involves coordination across processors, servers, power distribution, cooling, network fabrics and system-management software. A sufficiently detailed, interoperable blueprint could give manufacturers a common starting point while allowing them to customize configurations for specific customers.

AMD identifies support from eight major system and infrastructure companies: Cisco Compute, Dell Technologies, Hon Hai Technology Group, HPE, Lenovo, QCT, Supermicro and Wiwynn.

That roster is a meaningful signal that established manufacturers are interested in the design and may be preparing implementations.

It is not proof of customer adoption.

Supporting statements do not establish purchase orders, completed validation, production deployments, or a common availability date across the participating vendors. The announcement does not identify a named end customer operating a Helion system in production.

Nor does the participation of multiple manufacturers guarantee that their resulting configurations will deliver comparable performance, cooling characteristics, or operational behavior. Those outcomes depend on implementation details and validation.

For customers, the useful milestone will be a documented reference architecture with specific component configurations, supported software, interoperability testing and measurable operating characteristics.

November availability remains a target

AMD says partner-built Helion configurations are under development and planned for November 2026.

That language should not be interpreted as confirmation that every configuration will be orderable or deployable next month.

The announcement does not establish which partners will ship first, which configurations will be available, where they will be offered, or whether November refers to orderability, initial shipments, or customer deployment.

Those distinctions are especially important for rack-scale systems. Procuring servers is only one part of the process. Customers must also account for facility readiness, power and cooling capacity, network integration, software qualification and operational acceptance.

Until vendors publish specific product information and orderability details, November should be treated as a planned milestone rather than a confirmed delivery schedule.

The benchmark AMD still needs to publish

The most important missing evidence is a reproducible comparison of complete agent workloads.

AMD’s announcement does not provide independent benchmarks, defined workload characteristics, utilization measurements, power figures, or a cost model specific to Helion. Earlier modeled comparisons involving agentic-AI workloads should not be treated as measurements of this newly announced design.

A credible evaluation would need to define what the system is actually doing.

For example, a benchmark could measure completed agent tasks per second, end-to-end task latency, successful task completion rates, and tail latency under increasing concurrency. It should document the number and type of model calls, the proportion of tool execution, the retrieval workload, the database behavior, and the network configuration.

Power measurements should cover the relevant computing infrastructure rather than relying on processor specifications alone. For a disaggregated deployment, that means accounting for the CPU execution tier and the resources required to serve its model requests. For a consolidated configuration, it means measuring the combined system under a clearly defined workload.

Cost comparisons should include more than hardware acquisition. They should consider the cost of delivering a completed task, including accelerator utilization, electricity, cooling, networking, software operations, and the capacity needed to meet service-level requirements.

The comparison also needs a meaningful baseline. A CPU-led architecture should be tested against a realistic alternative configured for the same task and completion criteria, not an artificially underprovisioned system.

Finally, performance should be evaluated across different agent workload profiles. A retrieval-heavy workflow, a code-execution agent, and a model-intensive reasoning agent may produce very different results on the same hardware.

Until such measurements are available, claims of superior performance per watt, lower total cost or a general CPU advantage would be premature.

A credible architectural thesis, not yet a proven advantage

Helion reflects a broader shift in AI infrastructure thinking. As organizations move from isolated model queries toward systems that coordinate tools, data, and multistep execution, the supporting compute architecture may need to evolve beyond the accelerator-centric designs that have dominated much of the current AI investment cycle.

AMD’s proposal is that high-density CPU capacity can become a distinct resource for this work, either operating alongside a separate inference cluster or sharing a rack-scale design with Instinct accelerators.

That is a technically credible direction. It could allow operators to provision agent execution independently, give system builders more flexibility in balancing compute resources, and create an infrastructure framework for applications that place substantial demands on general-purpose processing.

But the economic case remains unproven. Agent workloads vary widely, CPU resources can be underutilized when applications are waiting on external systems, and disaggregation introduces network and operational requirements of its own. A large core count does not resolve those challenges automatically.

For SuperComputingOnline’s audience of HPC engineers, systems architects and AI infrastructure operators, the next phase of the story should focus on the details AMD has yet to publish: the reference topology, rack power, memory and network configuration, token-router implementation, vendor-specific availability and measured performance on representative workloads.

Helion is worth watching because it makes the CPU’s role in agentic AI an explicit rack-scale design decision. Whether it becomes an important new class of AI infrastructure will depend on evidence AMD has not yet supplied: useful work completed, at what latency, with what power consumption, and at what total cost.

The AI supercomputer’s hidden bottleneck: GlobalFoundries joins TSMC’s packaging supply chain
Featured

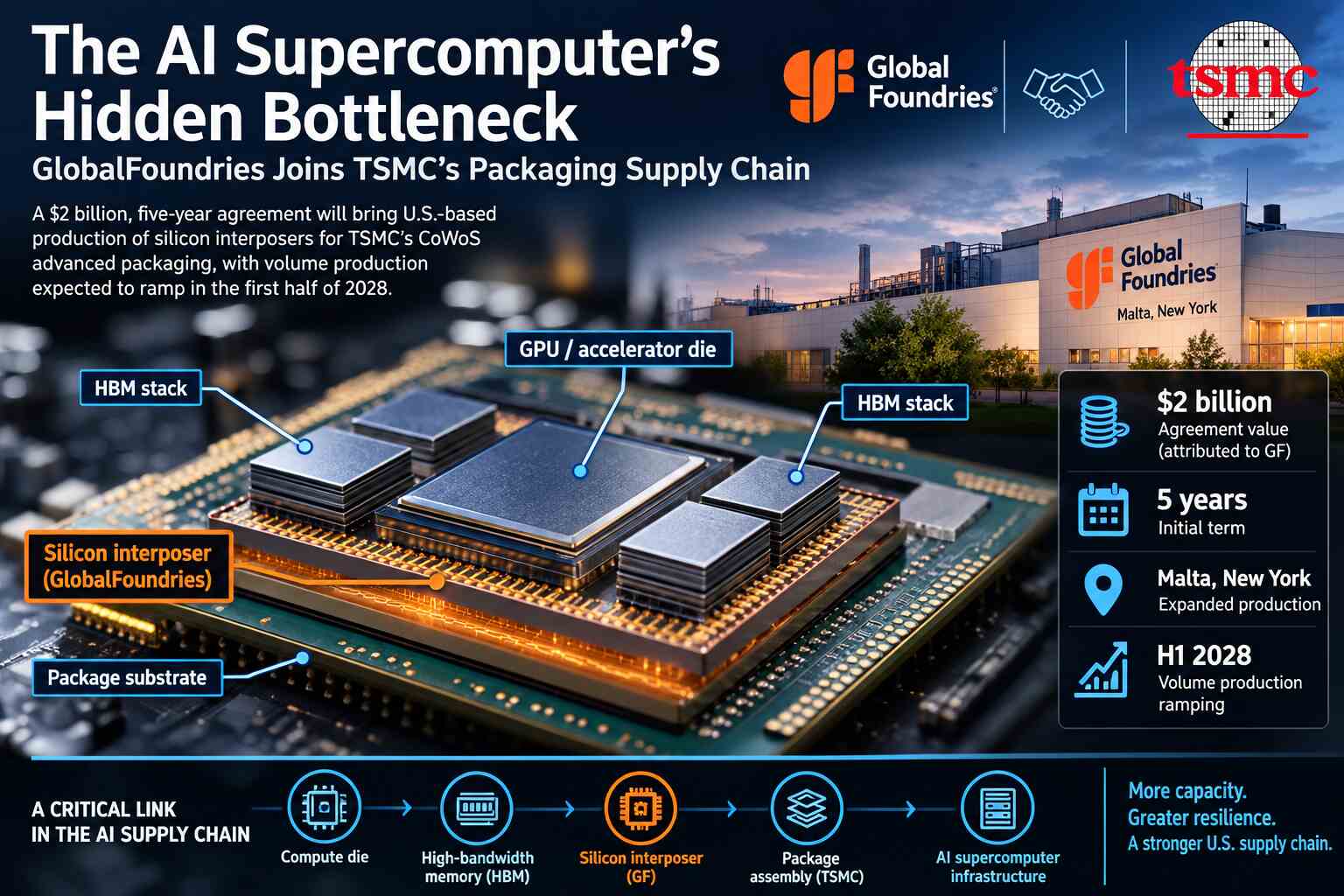

The AI supercomputer’s hidden bottleneck: GlobalFoundries joins TSMC’s packaging supply chain

Deckard, Staff Editor October 9, 2026, 4:00 pm

A five-year agreement valued by GlobalFoundries at $2 billion could strengthen U.S. semiconductor manufacturing. Still, a 2028 production ramp leaves a critical question unanswered: how much additional AI computing capacity will it actually unlock?

The race to develop increasingly powerful artificial intelligence supercomputers presents significant manufacturing challenges that extend beyond processor development. As accelerators become more complex and dependent on sophisticated memory systems, the interconnectivity of these components within a single package has emerged as a critical bottleneck for AI infrastructure.

To address this, GlobalFoundries and TSMC have entered into a five-year, $2 billion manufacturing agreement aimed at establishing a U.S.-based supply of silicon interposers for TSMC’s Chip-on-Wafer-on-Substrate (CoWoS) advanced-packaging ecosystem. While GlobalFoundries plans to expand its facility in Malta, New York, with volume production expected by the first half of 2028, the immediate impact of this partnership remains uncertain.

Because production is still years away and specific details regarding output and technical implementation remain undisclosed, it is unclear to what extent this agreement will alleviate supply constraints, increase memory bandwidth, or facilitate the production of finished AI accelerators. Ultimately, the industry must determine whether this additional capacity will sufficiently resolve the physical and electrical integration challenges currently facing large-scale AI workloads.

The bottleneck beneath the processor

The performance of a modern AI accelerator is defined by more than the raw computational throughput of its processing die.

Large-scale AI models necessitate the rapid exchange of vast quantities of data with high-bandwidth memory (HBM). Whether training models across thousands of accelerators or managing data movement within inference systems, the efficiency of data transfer is as consequential as the arithmetic performed by the processors.

Advanced packaging enables these systems by integrating multiple semiconductor dies and memory stacks into a compact assembly with high-density electrical interconnects. In a conventional CoWoS-S configuration, a silicon interposer serves as the vital foundation beneath the logic and HBM stacks, providing the fine-pitch wiring necessary for integration. While the interposer does not perform calculations, it provides the essential physical fabric that facilitates processor-memory synergy.

For supercomputing engineers, this distinction is paramount: theoretical computing capacity is only realized when execution units are supported by sufficient bandwidth and minimal latency. Consequently, the physical integration of logic and memory is a critical pillar of system architecture.

Manufacturing these assemblies at scale presents significant challenges, ranging from precise fabrication and fine-pitch interconnects to maintaining high yields during the integration of expensive components. As GlobalFoundries enters the supply chain at the interposer-manufacturing level, its efforts may alleviate specific component shortages. However, it is important to note that this agreement does not, in isolation, determine the final output volume of finished AI processors from TSMC.

Why TSMC is turning to another foundry

The arrangement illustrates an important feature of the modern semiconductor industry: even leading manufacturers increasingly depend on specialized partners to expand the capacity of complex production ecosystems.

TSMC remains the central packaging integrator in this arrangement. GlobalFoundries will provide manufacturing services for interposers built for TSMC’s CoWoS ecosystem, using technology governed by the companies’ licensing relationship, according to reporting on the agreement.

This is not a second, independent CoWoS platform, nor does it mean GlobalFoundries will manufacture the complete AI accelerators that emerge from TSMC’s packaging lines.

Instead, TSMC gains another manufacturing source for a component used in its broader production process. Externalizing part of that manufacturing could give TSMC additional flexibility as demand grows, while allowing GlobalFoundries to participate in the AI market without needing to manufacture the leading-edge logic dies at the center of those systems.

For GlobalFoundries, the agreement represents an opportunity to extend its role in semiconductor manufacturing beyond its established process-technology markets. The company has been developing differentiated capabilities in areas including silicon photonics and specialized semiconductor manufacturing. The interposer agreement adds another potential source of business tied to AI infrastructure.

Yet the commercial relationship also creates a dependency. TSMC controls the packaging ecosystem into which the components must fit. GlobalFoundries’ ability to benefit will depend on the requirements of TSMC and its customers, the economics of manufacturing the components, and the volume ultimately assigned to its facility.

The agreement establishes a route into the market. It does not yet reveal how profitable that route will be.

The $2 billion headline needs context

The announced value is substantial enough to attract attention, but it requires careful interpretation.

GlobalFoundries describes the arrangement as a $2 billion agreement with an initial term of five years. Dividing that figure evenly across five years produces a simple average of $400 million annually. That is an arithmetic illustration, not a disclosed revenue schedule.

The companies have not publicly specified whether the entire amount represents firm purchase commitments, expected manufacturing revenue, or another commercial measure of the agreement’s value. They have also not disclosed the capital expenditure required for the Malta expansion or a detailed production ramp.

Those omissions matter.

A manufacturing agreement valued at $2 billion does not necessarily mean that $2 billion will be paid immediately, that all the revenue is guaranteed, or that GlobalFoundries will recognize an even $400 million each year. Revenue would depend on the agreement’s terms, production timing, customer demand, and the delivery of qualifying components.

The figure should therefore be understood as the value GlobalFoundries has assigned to the agreement, rather than as a confirmed $2 billion investment by TSMC or an unconditional purchase order.

The timing adds another qualification. GlobalFoundries expects volume production to begin ramping in the first half of 2028. Capacity must be installed, manufacturing processes qualified, and output brought to commercially useful levels. The announcement does not disclose the expected production rate or the time required to reach full capacity.

The financial opportunity is real enough to merit attention. Its ultimate size and profitability, however, remain unproven.

The critical technical question: Which CoWoS architecture?

One of the most consequential unanswered questions concerns the specific interposer technology GlobalFoundries will manufacture.

CoWoS is a family of advanced-packaging approaches, not a single, interchangeable product. The distinction between its architectures affects how the interposer is built, how components are integrated, and which processor designs can use the resulting package.

CoWoS-S uses a full silicon interposer. CoWoS-L uses a different approach involving redistribution layers and localized silicon interconnect structures. These approaches have different manufacturing requirements and design implications.

GlobalFoundries’ announcement identifies silicon interposers and embedded deep-trench capacitor components, but it does not clearly specify the exact CoWoS variant, the complete component mix, or the accelerator designs that will use the Malta output.

That gap limits any attempt to calculate the agreement’s effect on the supply of leading AI processors.

If the new production line primarily supports one packaging architecture, its value will depend partly on the demand outlook for that architecture and the designs that use it. If the output supports another configuration or a wider set of components, the potential market and manufacturing economics could differ.

The question is especially relevant as the industry evolves toward more complex multi-die packages and increasingly demanding memory configurations. Manufacturing capacity must match the package designs customers actually need, not simply a broad category of advanced semiconductor components.

Without confirmation from GlobalFoundries or TSMC, assigning the new capacity to specific GPU generations or accelerator programs would be speculative.

For HPC engineers, this is more than a technical footnote. The interposer’s characteristics, the package architecture, the memory configuration, and the completed assembly all affect the system that ultimately reaches a data center.

Deep-trench capacitors and power delivery

GlobalFoundries has specifically highlighted embedded deep-trench capacitor components as part of the advanced-packaging technology associated with the project.

These structures can provide capacitance within silicon, helping stabilize local power delivery. When a high-performance processor switches rapidly between computational states, its power-delivery network must respond to changing current demands while maintaining supply voltage within acceptable limits.

Power integrity becomes more challenging as packages integrate high-power compute dies and multiple HBM stacks into increasingly dense assemblies. Voltage fluctuations can affect reliable operation, and the placement and characteristics of decoupling capacitance are important elements of package and power-delivery design.

Embedding capacitors in silicon can provide a way to place capacitance close to the circuitry it supports. However, the actual benefits depend on the implementation, electrical design, package geometry, and operating conditions.

The announcement does not quantify the electrical or performance improvements associated with the components GlobalFoundries will produce. It would therefore be premature to claim that the agreement will directly increase accelerator performance or reduce power consumption by a particular amount.

The more defensible conclusion is that the project addresses a component of the increasingly sophisticated electrical and physical integration required by next-generation AI packages.

A U.S. supply chain, but not yet a domestic AI chip ecosystem

The Malta expansion also has a geographic dimension.

GlobalFoundries says the agreement will establish the first U.S.-based source of silicon interposers supporting advanced-packaging technologies of the type described in its announcement. That is a company claim and should be attributed as such until independently established in its precise scope.

The strategic rationale is clear. Semiconductor production is distributed across a global network of fabrication plants, packaging facilities, memory manufacturers, substrate suppliers, and equipment vendors. Concentration of critical capabilities in particular regions can create exposure to geopolitical disruption, transportation constraints, and sudden changes in demand.

Adding a U.S.-based source for an important packaging component could give TSMC and its customers another option. It may also complement broader efforts to develop semiconductor manufacturing and packaging capabilities within the United States.

But a domestic interposer supply does not, by itself, create a fully domestic AI accelerator supply chain.

A finished AI package still depends on logic dies, HBM, package substrates, precision assembly, testing, and other inputs. The geographic origin of each component and the location of each manufacturing step determine how much of the supply chain is actually domestic.

Nor have the companies confirmed where GlobalFoundries’ interposers will ultimately be used. A New York manufacturing source could potentially support packaging operations in the United States or elsewhere, but the agreement does not establish the destinations of the components.

That distinction is essential when evaluating claims about supply-chain resilience. Manufacturing one critical component domestically can reduce a specific dependency. It does not eliminate the wider dependencies surrounding the finished system.

The 2028 problem: What happens before the capacity arrives?

The production timetable is the most immediate limitation on the deal’s near-term significance.

The agreement was announced in October 2026, with volume production expected to begin ramping during the first half of 2028. That schedule positions the project to contribute to a future phase of AI infrastructure expansion rather than providing an immediate solution to current supply constraints.

Even after the initial ramp begins, actual contributions will depend on production yields, installed capacity, customer qualification, and the availability of complementary packaging and assembly resources.

The distinction between component capacity and finished-system output is crucial. Increasing interposer production will not automatically increase the number of operational accelerators if other stages of the manufacturing process remain constrained.

For data-center operators and supercomputer builders, the metric that ultimately matters is not the number of interposers produced in isolation. It is the number of qualified, fully assembled accelerators that can be delivered, integrated, powered, cooled, and operated reliably.

The GlobalFoundries agreement could help support that outcome, but the public information does not yet allow its contribution to be quantified.

What the agreement does not tell us

Several missing details will determine whether this becomes a meaningful expansion of AI manufacturing capacity or a strategically useful but relatively limited addition to the supply chain.

First, the companies have not disclosed the planned production capacity, measured in interposers or wafers over a defined period. Without those figures, it is impossible to estimate the share of TSMC’s requirements that Malta might eventually supply.

Second, the manufacturing investment remains undisclosed. The equipment, process qualification, facility modifications, and production ramp required to support the agreement will influence the economics and timing of the project.

Third, the precise product specifications and packaging architectures have not been fully established in the public announcement. Those details are necessary to evaluate the addressable market and the agreement’s potential durability.

Fourth, the commercial terms remain insufficiently detailed to determine how the $2 billion is structured or how much revenue GlobalFoundries can reasonably expect to recognize over the agreement’s life.

Finally, the relationship between this interposer supply and other U.S. packaging initiatives remains an open question. The agreement could eventually complement packaging operations in Arizona, but neither company has established that the Malta output will feed a particular U.S. packaging facility.

These are not reasons to dismiss the deal. They are the questions that separate a strategic announcement from a measurable change in the industry’s ability to manufacture AI hardware.

The bigger lesson for supercomputing

The GlobalFoundries–TSMC agreement illustrates how the constraints on AI infrastructure are becoming more distributed across the semiconductor manufacturing process.

For years, discussions of advanced computing hardware have concentrated heavily on processor performance, transistor scaling, and accelerator counts. Those remain important, but the economics and availability of large AI systems increasingly depend on the integration of compute, memory, power delivery, packaging, and the manufacturing processes connecting them.

Advanced packaging is a particularly important part of that equation because it determines how effectively multiple dies and memory stacks can be assembled into a functioning system. As accelerator designs become more complex, the supply of specialized packaging components becomes part of the broader capacity planning problem.

The same lesson applies at the data-center level. More accelerator capacity is useful only when the surrounding infrastructure can support it. Power availability, cooling, networking, storage, and operational reliability all influence how much computing performance an organization can deploy in practice.

The semiconductor supply chain has its own version of this constraint: a shortage in one specialized manufacturing stage can limit the output of an otherwise capable production network.

GlobalFoundries is positioning itself to mitigate these constraints; its agreement with TSMC could enhance supply chain flexibility and bolster the U.S. manufacturing infrastructure for critical packaging components.

However, the ultimate significance of this announcement will be defined by actual production volumes, technical specifications, commercial terms, and the resulting increase in finished package output. The evolution of AI supercomputing is no longer solely a competition to design the fastest processor; it has become a complex challenge of manufacturing, interconnecting, powering, and delivering the holistic ecosystem required to scale those processors effectively.

While GlobalFoundries and TSMC have initiated a meaningful expansion of this manufacturing base, the critical test remains whether the additional capacity is delivered on schedule, aligns with evolving packaging architectures, and produces a measurable impact on the supply of completed AI computing systems. Until further details are disclosed, this $2 billion agreement should be viewed as a strategically significant investment in the future of high-performance computing, rather than an immediate solution to current industry bottlenecks.

  • The AI factory becomes the new supercomputer test lab
  • Google’s 3.6 GW compute bet: Nuclear power becomes part of the supercomputer
  • 1
  • 2
Page 1 of 2
POPULAR RIGHT NOW
  • 10,000 AI agents, 130 billion tokens and 88 hours: How OpenAI turned Navier–Stokes into a supercomputing workload
    10,000 AI agents, 130 billion tokens and 88 hours: How OpenAI turned Navier–Stokes into a supercomputing workload
  • Jensen Huang to G20: Build the AI infrastructure, or risk being left behind
    Jensen Huang to G20: Build the AI infrastructure, or risk being left behind
  • Millions of CPU cores meet 69 billion molecules: AI rewrites the rules of computational drug discovery
    Millions of CPU cores meet 69 billion molecules: AI rewrites the rules of computational drug discovery
  • NASA’s Roman Space Telescope will turn the universe into a supercomputing problem
    NASA’s Roman Space Telescope will turn the universe into a supercomputing problem
  • The algo is the supercomputer: AI rewrites the search for protein ion-binding sites
    The algo is the supercomputer: AI rewrites the search for protein ion-binding sites
  • Supercomputing rewrites the Sun’s history and Earth’s climate
    Schematic of the heliosphere. Several elements that form the heliosphere are noted. The width of the sector region is expected to vary with the solar cycle. Figure created by Adam Hong.
    Schematic of the heliosphere. Several elements that form the heliosphere are noted. The width of the sector region is expected to vary with the solar cycle. Figure created by Adam Hong.
  • Qualcomm enters the supercomputing arena as AWS partnership challenges Nvidia’s AI infrastructure dominance
    Qualcomm enters the supercomputing arena as AWS partnership challenges Nvidia’s AI infrastructure dominance
  • Fugaku goes inside the molecular machine: Supercomputer simulations reveal how kinesin knows which way to step
    Fugaku goes inside the molecular machine: Supercomputer simulations reveal how kinesin knows which way to step
  • From the Tibetan Plateau to California: Supercomputing reveals a hidden source of flood predictability
    From the Tibetan Plateau to California: Supercomputing reveals a hidden source of flood predictability
  • Supercomputing reconstructs the moon Venus may have lost
    Supercomputing reconstructs the moon Venus may have lost
THIS YEAR'S MOST READ
  • Wall Street wants to trade supercomputing power like oil
    Wall Street wants to trade supercomputing power like oil
  • Beamforming the future: BeammWave's 6G push signals the rise of orbital-terrestrial wireless networks
    Joakim Axmon
    Joakim Axmon
  • AI breaks conservation barriers: Australia’s Wildlife Observatory leverages supercomputing to protect biodiversity
    AI breaks conservation barriers: Australia’s Wildlife Observatory leverages supercomputing to protect biodiversity
  • Silicon spintronics brings the P-computer closer to reality
    Microscope image of a semiconductor-integrated spintronic test chip developed by researchers at Tohoku University and NIST. The device demonstrates the first silicon-integrated probabilistic bit (p-bit), a key building block for future large-scale probabilistic computers designed for AI and optimization workloads.
    Microscope image of a semiconductor-integrated spintronic test chip developed by researchers at Tohoku University and NIST. The device demonstrates the first silicon-integrated probabilistic bit (p-bit), a key building block for future large-scale probabilistic computers designed for AI and optimization workloads.
  • Physics-trained ‘Digital Super Brain’ learns from supercomputers to accelerate discovery
    Physics-trained ‘Digital Super Brain’ learns from supercomputers to accelerate discovery
  • Hidden order, revealed at scale: Supercomputing, electron ptychography uncover the inner workings of relaxor ferroelectrics
    Hidden order, revealed at scale: Supercomputing, electron ptychography uncover the inner workings of relaxor ferroelectrics
  • Memory has become the new compute: Why Micron, SK Hynix crossing $1 trillion matters to supercomputing
    Memory has become the new compute: Why Micron, SK Hynix crossing $1 trillion matters to supercomputing
  • Cosmic ambition at scale: UK’s supercomputer unlocks a 2.5 petabytes universe
    Cosmic ambition at scale: UK’s supercomputer unlocks a 2.5 petabytes universe
  • Huawei’s Tau Scaling ambition tests the limits of post-Moore semiconductor reality
    He Tingbo from HUAWEI delivered a keynote speech titled "New Semiconductor Path in Practice"
    He Tingbo from HUAWEI delivered a keynote speech titled "New Semiconductor Path in Practice"
  • Intel's Q1 results signal supercomputing surge driving Xeon momentum
    Intel's Q1 results signal supercomputing surge driving Xeon momentum
MOST READ OF ALL-TIME
  • Largest Computational Biology Simulation Mimics The Ribosome
    Details
    112727
    The amino acid (green) slithers into the chemical reaction center, moving through an evolutionarily ancient corridor of the ribosome (purple). The amino acid is delivered to the reaction core by the transfer RNA molecule (yellow).
    The amino acid (green) slithers into the chemical reaction center, moving through an evolutionarily ancient corridor of the ribosome (purple). The amino acid is delivered to the reaction core by the transfer RNA molecule (yellow).
  • Silicon 'neurons' may add a new dimension to chips
    Details
    82186
    Silicon 'neurons' may add a new dimension to chips
  • Linux Networx Accelerators Expected to Drive up to 4x Price/Performance
    Details
    76228
  • Complex Concepts That Really Add Up
    Details
    74726
    Complex Concepts That Really Add Up
  • Blue Sky Studios Donates Animation SuperComputer to Wesleyan
    Details
    68787
    Each rack holds 52 Angstrom Microsystem-brand “blades,” with a memory footprint of 12 or 24 gigabytes each. (Photos by Olivia Bartlett Drake)
    Each rack holds 52 Angstrom Microsystem-brand “blades,” with a memory footprint of 12 or 24 gigabytes each. (Photos by Olivia Bartlett Drake)
  • Humanities, HPC connect at NERSC
    Details
    58669
  • TeraGrid ’09 'Call for Participation'
    Details
    55611
  • Turbulence responsible for black holes' balancing act
    Details
    53043
  • Cray Wins $52 Million SuperComputer Contract
    Details
    50769
  • SDSC Researchers Accurately Predict Protein Docking
    Details
    46917
  • FRONTPAGE
  • LATEST
  • POPULAR
  • REGISTER
  • SOCIAL
  • VIDEO
  • SUBSCRIPTION
  • RSS
  • GUIDELINES
  • PRIVACY
  • TOS
  • ABOUT
  • +1 (816) 799-4488
  • editorial@supercomputingonline.com
© 2001 - 2026 SuperComputingOnline.com, LLC. All rights reserved. This material may not be published, broadcast, rewritten or redistributed without permission.
Sign In
  • FRONT PAGE
  • LATEST
    • MEDIA KIT
    • MOST READ
    • RSS FEED
    • ACADEMIA
    • AEROSPACE
    • APPLICATIONS
    • ASTRONOMY
    • AUTOMOTIVE
    • BIG DATA
    • BIOLOGY
    • CHEMISTRY
    • CLIENTS
    • CLOUD
    • DEFENSE
    • DEVELOPER TOOLS
    • EARTH SCIENCES
    • ECONOMICS
    • ENGINEERING
    • ENTERTAINMENT
    • HEALTH
    • INDUSTRY
    • INTERCONNECTS
    • GAMING
    • GOVERNMENT
    • MANUFACTURING
    • MIDDLEWARE
    • MOVIES
    • NETWORKS
    • OIL & GAS
    • PHYSICS
    • PROCESSORS
    • RETAIL
    • SCIENCE
    • STORAGE
    • SYSTEMS
    • VISUALIZATION
  • VIDEOS
    • ADD YOUR VIDEOS
    • MANAGE VIDEOS
  • COMMUNITY
    • TRADE SHOWS
    • SOCIAL NETWORK VIDEOS
    • SURVEYS
    • APPLICATIONS BROWSER
    • CONVERSATION INBOX
    • SOCIAL ADVERTISER
    • GROUPS
    • MARKETPLACE LISTINGS
    • PAGES
    • LEADERBOARD
    • POINTS LISTING
      • BADGES
    • PRIVACY CONFIRM REQUEST
    • PRIVACY CREATE REQUEST

Hey there! We noticed you’re using an ad blocker.
